Most lenses in current LED applications use perform output beams with circular or elliptical profiles. The light distribution as well as the intensity they produce is mostly suitable for many applications in which a small spot is focused by the light beam.
However, a uniform intensity distribution focused to a wider and not circular pattern, often referred to as a “flat-top”, is increasingly required in many different uses, which so far is often considered unusual.
As an example, the inspection lines of the materials processing departments require a wide rectangular spot of light that has a perfect and uniform light intensity distribution. This will ensure that the entire illuminated area is perfectly processed and controlled.
The rectangular spot is used essentially for illumination and not for focusing a single individual point.
For this reason, it is essential that the illumination is uniform, and any point in the rectangular light pattern needs to have the same features of brightness, regardless of where it is located in the illuminated field.

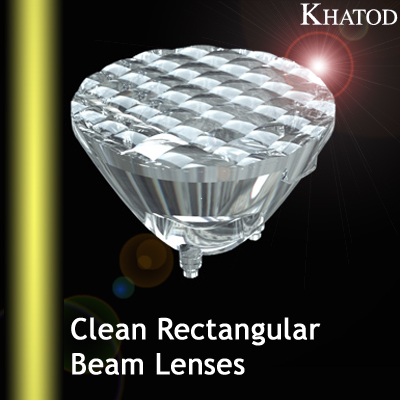

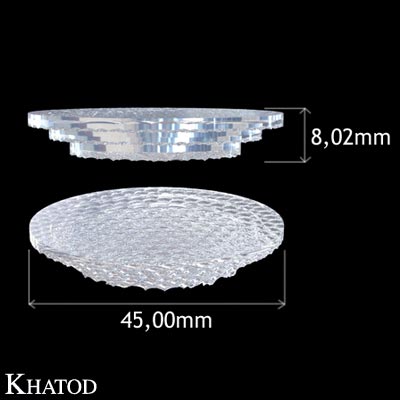

Thanks to Khatod’s most advanced optical technology, PL1672 Lens is able to produce a perfect rectangular beam. The toroidal lenslet array creates a rippled surface able to reshape the light into a beam with a size of an A4 paper sheet (- 300×200 mm2, 12×8 inch2) at 1 m distance. The distribution in the light pattern is totally uniform.
These characteristics cover a wide range of applications that can be generally classified as “illumination”. They may range from the use for lighting in a museum to desk lamps or inspection lines as explained above.
This new series of optics is currently available in 3 different diameters: 50.0mm?; 46.8m?; 35.0mm?.
The mounting onto the LED is easy and immediate: 3 pins on the lens bottom allow a precise and robust mounting.
General Characteristics
Single Lenses performing Rectangular Beam Angle for Common LEDs
Clean Rectangular Beam Lens
Beam Angle for Common LEDs
Invariant performance for a wide range of LEDs
Lens material: Optical Grade PMMA
Features
Beam size at 1 m ~ A4 paper sheet (~ 300×200 mm2, 12×8 inch2)
Excellent Uniformity > 85%.
Clean Spot
Efficiency > 89%
Easy fixing onto the PCB: 3 Pins provided for precise and robust mounting
Currently available in 35.0mm diameter. On request, also ? 50.0mm and ? 46.8mm are available
Typical Applications:
Thanks to Khatod’s most advanced optical technology, PL1672 Lens is able to produce a perfect rectangular beam. The toroidal lenslet array creates a rippled surface able to reshape the light into a beam with a size of an A4 paper sheet (- 300×200 mm2, 12×8 inch2) at 1 m distance. The distribution in the light pattern is totally uniform.
These characteristics cover a wide range of applications that can be generally classified as “illumination”. They may range from the use for lighting in a museum to desk lamps or inspection lines as explained above.
This new series of optics is currently available in 3 different diameters: 50.0mm?; 46.8m?; 35.0mm?.
The mounting onto the LED is easy and immediate: 3 pins on the lens bottom allow a precise and robust mounting.
General Characteristics
Single Lenses performing Rectangular Beam Angle for Common LEDs
Clean Rectangular Beam Lens
Beam Angle for Common LEDs
Invariant performance for a wide range of LEDs
Lens material: Optical Grade PMMA
Features
Beam size at 1 m ~ A4 paper sheet (~ 300×200 mm2, 12×8 inch2)
Excellent Uniformity > 85%.
Clean Spot
Efficiency > 89%
Easy fixing onto the PCB: 3 Pins provided for precise and robust mounting
Currently available in 35.0mm diameter. On request, also ? 50.0mm and ? 46.8mm are available
Typical Applications:
