New Suspended installation  for LED panel light

1.  Suspending installation accessories:

A: Will installed on the back of panel, and match with B.
B: Will match/connect with A,
C: The cable, B and D have been instllaed on the C.
D: Will mtach/connect with E

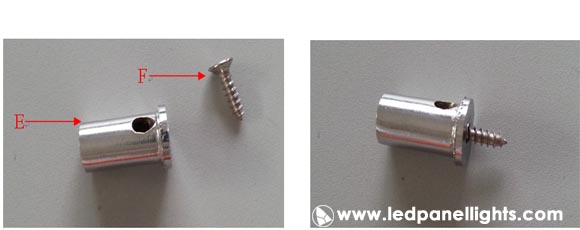

E: Will be installed on the ceiling.
F: Screws for E to be installed on the ceiling.
G: The cable length can be adjusted by press G.

The 4 steps will be as follow:

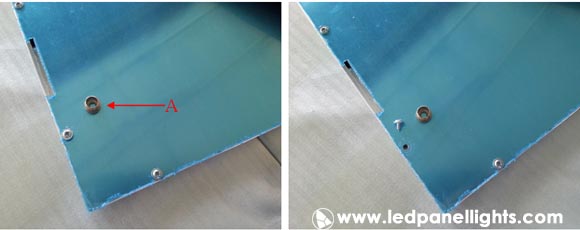

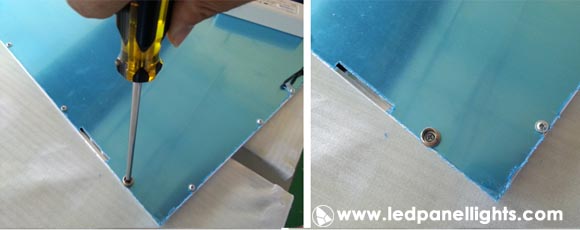

Step 1. Install the A on the back of panel

Notice:

Need to install 4 PCS of A on the 4 corner of back of LED panel for 30x30cm/60x60cm LED panel. And 6 PCS of A is required for 30x120cm / 60x120cm LED panel

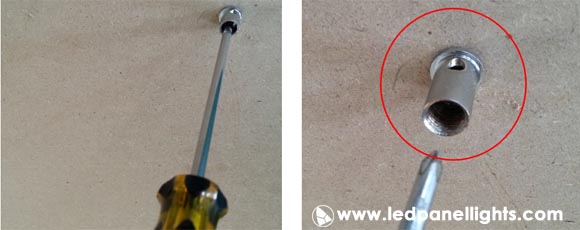

Step 2.  Install the E on the ceiling

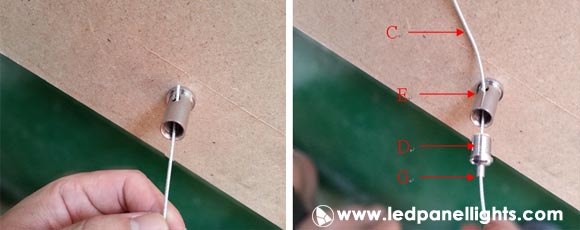

Sept 3.  Screw /connect the Cable C via D to E

Notice:
The cable length can be adjusted by G,  The B at another end of the Cable C will connect with LED panel via A.

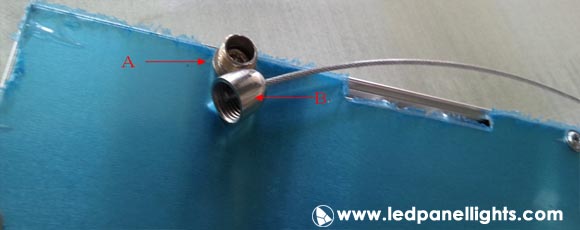

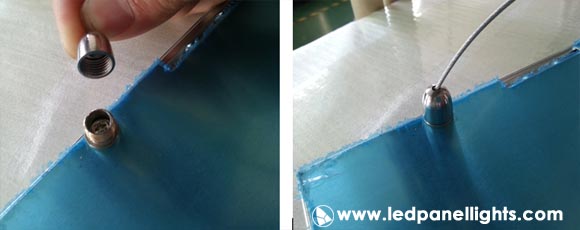

Sept 4.  Screw/connect the Cable C via B to A.

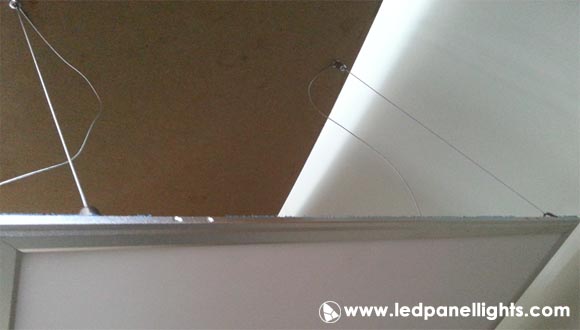

5. Finished.
